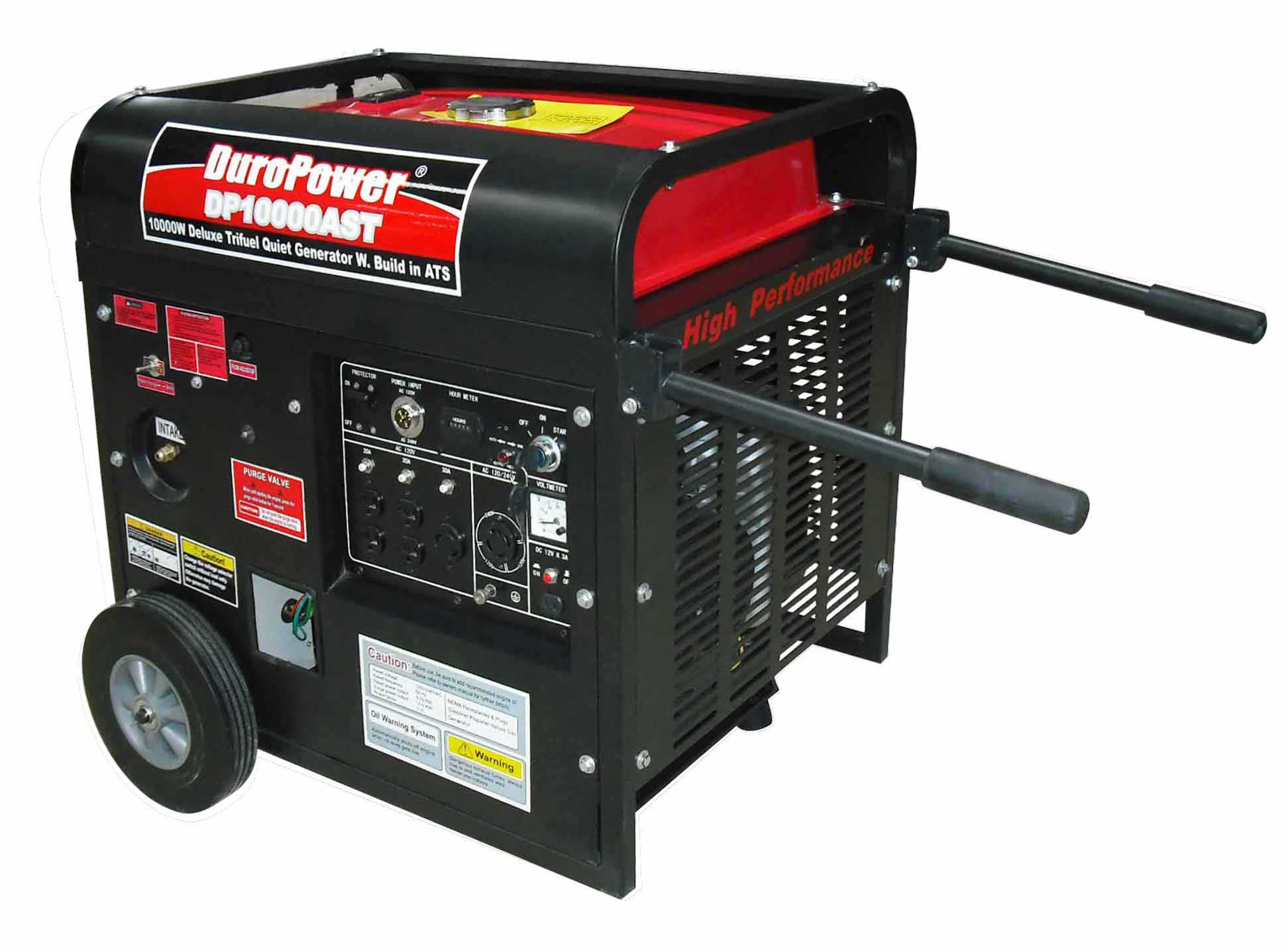

10000W Trifuel Deluxe Silent Generator

With Build In ATS for Standby Function

The DP10000AST Features & Specifications

1.   16.0HP Air Cooled OHV Trifuel (Gas/LP/NG) Powered Engine

DP420ET 16.0HP, 420cc, Air Cooled, OHV, 4 Stroke Engine With Low Oil Shutoff, Trifuel Kit , Build in ATS …Smooth Running, E-start & Automatic start ATS system with EZ Pull Start Back up( 12V20AH Battery Included).

(US CARB Trifuel kits with pressure valve installed in the Engine)

2.        Fully Enclose Heavy Duty Steel Frame with Deluxe Design

Fully Enclose Heavy Duty Steel Frame with Four Point Fully Isolated Motor Mounts for Smooth & Quiet Operation.

3.      Long 24-Hour Run Time with 13 gallon fuel tank.

Long 16-Hour Run Time At 100% Rated Output.

Long 24-Hour Run Time At 50% Rated Output.

Over 8 hours run with a 20 Lbs full propane tank.

Over 300 hours continues running with Nature Gas supply or big enough LP tank.

4.     10000W Surge Output with Gas; 8500W Surge with Propane/Nature Gas

Max. AC Output: 9250W           Max. AC Output: 7850W

Rated AC Output: 8750W          Rated AC Output: 7250W

5.        13 Gallon Tank with Gauge

All Steel 13 Gallon Fuel Tank with EZ- Read Gauge

6.        Decibel: 68dBA

Fully Enclose frame & Super Quiet Muffler with Spark Arrestor Reduces Engine Noise

7.        Full Power Panel

Full Power Panel with Engine Shutoff Switch, Voltmeter, Hour meter, Voltage Selector, AC & DC Circuit Protector, AC Circuit Breaker & Power Outlets. Specially, Build in ATS (Automatic Transfer Switch) control connector

8.      5 Pole Single Phase 120V AC & 1 Pole 120V/240V AC & 1 Pole 12V DC Output Generator

Fully Protected 4 Pole 120V/ 60Hz Max Current 20A AC Output (NEMA 5-20R)

1 Pole 120V/ 60Hz Max Current 30A AC Output (NEMA L5-30R)

1 Pole 120/240V Max Current 30A AC Output (NEMA L14-30R)

1 Pole 12V DC with Max Current 8.3A DC Battery Recharging Cables

 included.

9.        Idle Control Saves Fuel

    New Tech Throttle With Idle Control Saves Fuel & Reduces Noise

10.    Portability Wheel / Foldable Handle Bar Kit & Tools & Plugs Included

Two 10” Wheels & Handle Bar, Instructions Included

Tools: Ranch for Spark Plug replace, 12/14 & 10/13 Two Side ranch

Plugs: 2 x NEMA L5-30P, 2 x NEMA 5-20P, 1 x NEMA L14-30P

11.    Easy Run A Variety Of Electric Appliances & Tools

   Great for: Home & Small Business Emergency Power Back up.

12.    One Year/1000 Hours Warranty For Residential.

  Three Months/1000 Hours Warranty For Commercial.

  Package Size:  33”× 28”× 30”
   Gross Weight:  275 Lbs.
