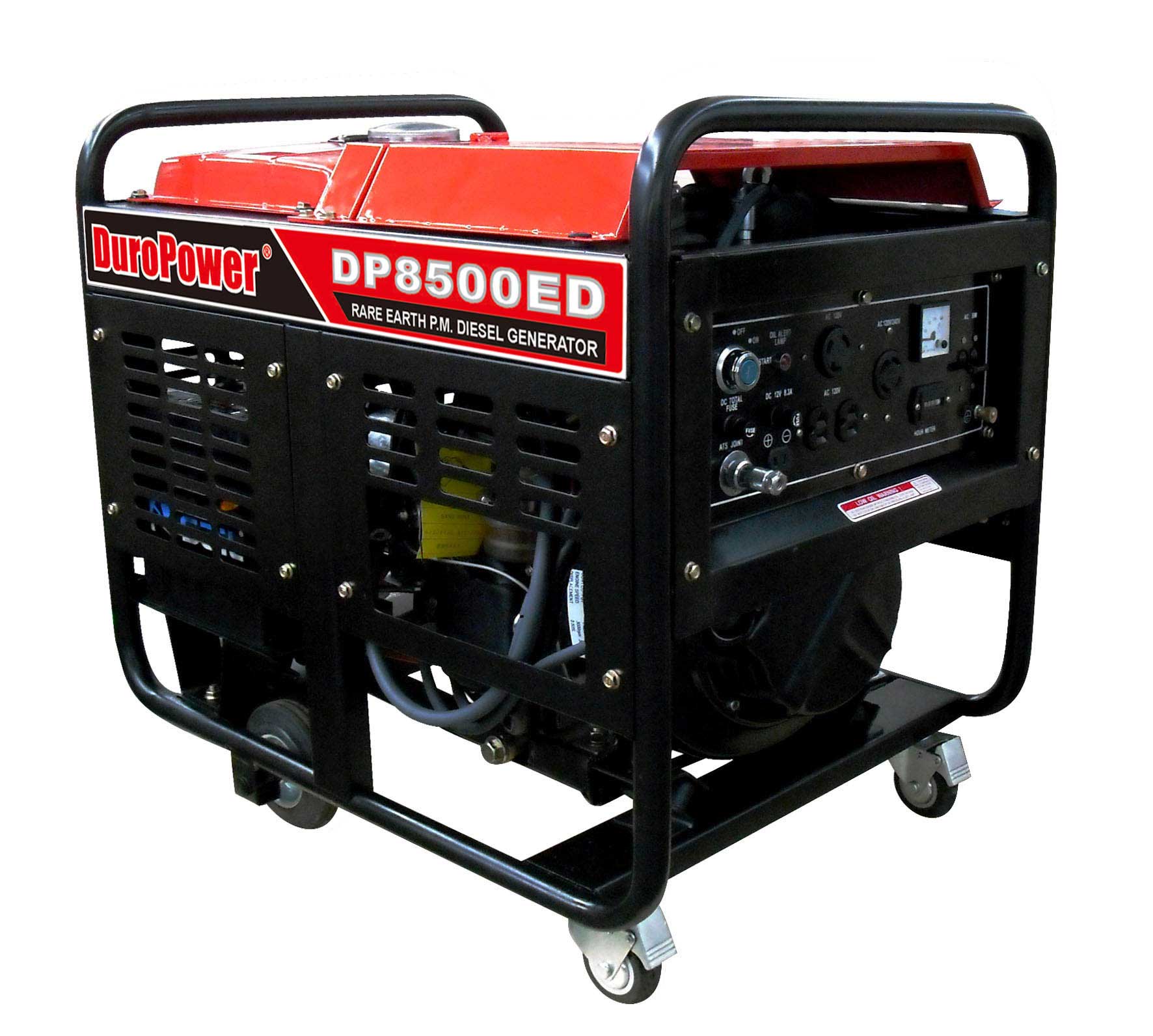

8500W Rare-Earth P.M. Diesel Generator

The DP8500ED Features & Specifications

1.        11.0HP Air Cooled Diesel Engine

11.0HP, 505cc,Single Cylinder, Air Cooled, Direct Injection, 4 Stroke, Diesel Engine With Low Oil Shutoff, Smooth Running & E-start.

2.        Heavy Duty Rigid Steel Frame

Heavy Duty Rigid Steel Frame With Four Point Fully Isolated Motor Mounts For Smooth & Quiet Operation.

3.        Long 8-Hour Run Time

Long 6-Hour Run Time At Full Rated Output.

Long 10-Hour Run Time At 50% Rated Output.

4.        8500W Surge Output: Rare-Earth P.M. Generator provide more than 10% output.

Max. AC Output: 8000W

Rated AC Output: 7000W

5.      4.5 Gallon Tank with Gauge

All Steel 4.5 Gallon Fuel Tank With EZ-read Gauge

6.        Decibel: 90 dBA at 10 Yard.

Super Quiet Muffler With USDA-Qualified Spark Arrestor Reduces Engine Noise.

7.        Full Power Panel

Full Power Panel With Engine Shutoff Switch, Voltmeter, ATS Connector for DP40ATS, Alert Lamp, AC Circuit Breaker, AC & DC Circuit Protector & Power Outlets.

8.        3 Pole Single Phase 120V AC & 1 Pole 120V/240V AC & 1 Pole 12V DC Output Generator

Fully Protected 2 Pole 120V/ 60Hz Max. Current 20A AC Output (NEMA 5-20R)

1 Pole 120V/ 60Hz Max. Current 30A AC Output (NEMA L5-30R)

1 Pole 120/240V Max. Current 30A AC Output (NEMA L14-30R)

1 Pole 12V DC with Max Current 8.3A DC Battery Recharging Cables Included.

9.        Idle Control Saves Fuel

New Tech Throttle With Idle Control Saves Fuel & Reduces Noise

10.    Diesel Rare-Earth Permanent Magnet Generator provide super clean power THD<5% w/o AVR

11.    Portability Wheel / Kit Included

Four 4" wheels with EZ moving system & Instructions Included.

12.    Easy Run A Variety Of Electric Appliances & Tools

Great for: Remote Areas, Construction Sites, Outdoor Activities, Emergency Power

13.    One Year/1000 Hours Warranty For Residential.

Six Months/1000 Hours Warranty For Commercial.

Package Size: 31" x 23 1/2" x 33 1/2?

Gross Weight:  285 Lbs.
