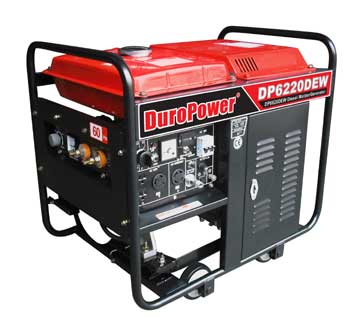

6000W/220A Deluxe Elec. Start Diesel Welder/Generator

The DP6220DEW Features & Specifications

1.        9.0HP Air Cooled Diesel Engine

DP418DE 9.0HP, 418cc, Single Cylinder, Air Cooled, Direct Injection, 4 Stroke, Diesel Engine With Low Oil Shutoff & E-Start & EZ pull start back up.

2.        Deluxe Heavy Duty Rigid Steel Frame

Deluxe Heavy Duty Rigid Steel Frame With Four Point Fully Isolated Motor Mounts For Smooth & Quiet Operation.

3.        Long 8-Hour Run Time

Long 6-Hour Run Time At Full Rated Output.

Long 8-Hour Run Time At 50% Rated Output.

4.        6000W Surge Output: Automatic Voltage Regulator keep clean Power output.

Max. AC Output: 5500W at 120/240V

Rated AC Output: 5000W at 120/240V three phase

5.        4.0 Gallon Tank With Gauge

All Steel 4.0 Gallon Fuel Tank with EZ-Read Gauge

6.        Decibel: 75dBA

Super Quiet Muffler With USDA-Qualified Spark Arrestor Reduces Engine Noise.

7.        Full Power Panel

Full Power Panel with Engine Shutoff Switch, Digital Voltmeter & hour meter, Voltage Selector, Oil Alert Lamp, AC Circuit Breaker, AC & DC Circuit Protector & ATS receptacle & Power Outlets.

8.        3 Pole Single Phase 120V AC & 1 Pole 120/240V AC & 1 Pole 12V DC Output Generator

Fully Protected 2 Pole 120V/ 60Hz Max Current 20A AC Output (NEMA 5-20R)

1 Pole 120V/ 60Hz Max Current 30A AC Output (NEMA L5-30R)

1 Pole 208V Max Current 30A AC Output (NEMA L14-30R)

1 Pole 12V DC with Max Current 8.3A DC Battery Recharging Cables Included.

9.  Portability Deluxe Wheels / Handle Bar Kit Included

Four 4” Deluxe Strong Wheels & Handle Bar, Instructions Included.

10. Easy Start & Pull Start Back up & Run A Variety Of Electric Appliances & Tools

Great for: Home or Commercial Emergency Power & Welder Job Operation.

11. One Year/1000 Hours Warranty For Residential.

Three Months/1000 Hours Warranty For Commercial

12.  Package Size:  39?×24?×33?
    Gross Weight:  396 lbs.
