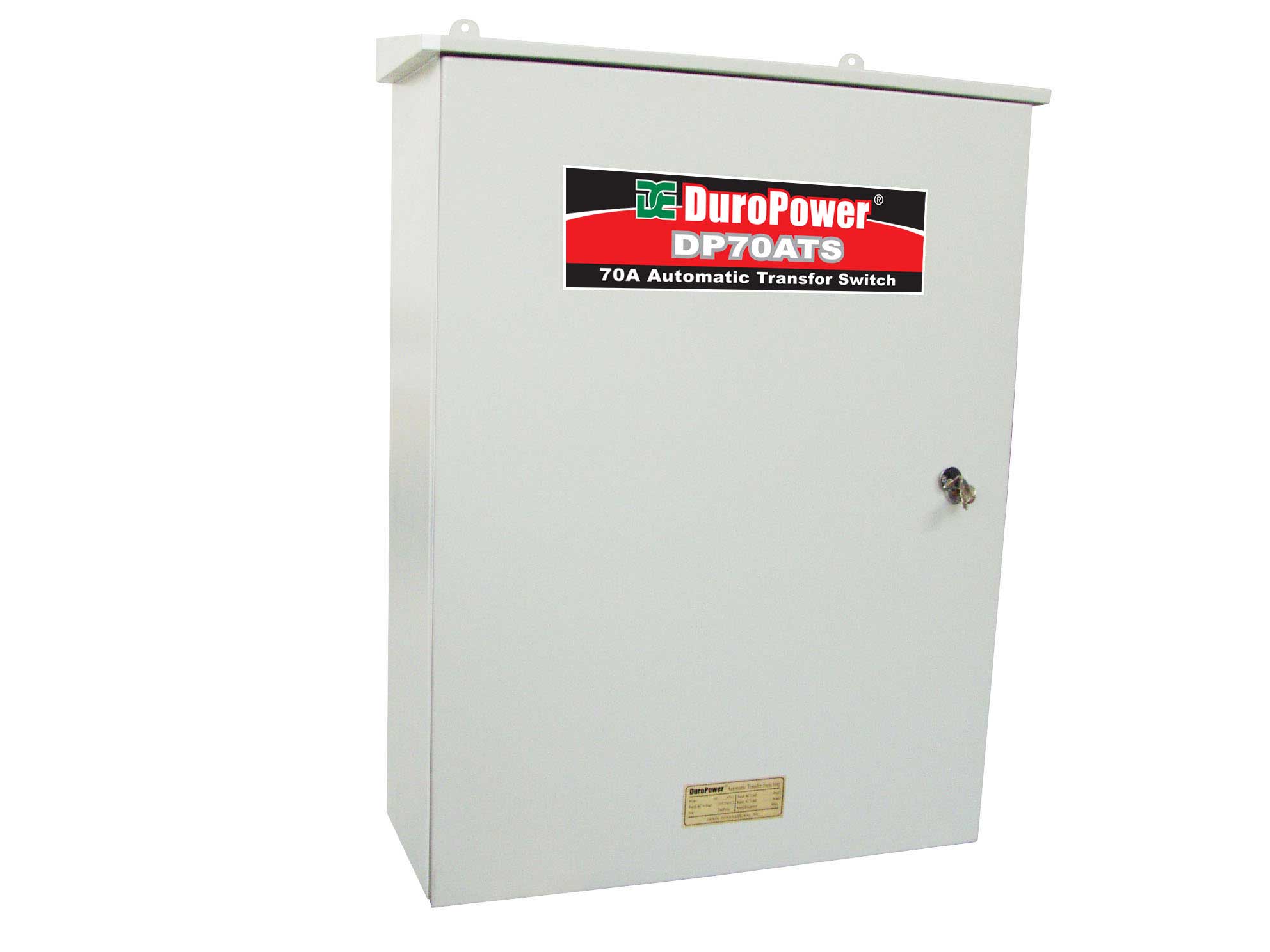

The DP70ATS 70A Automatic Transfer Switch

Features & Specifications


1. Fully Automatic
Fully Automatic Turn on your generator during power failure & lights working! The Automatic transfer switch monitors incoming voltage from utility lines and immediately signals the generator when power is interrupted. Within seconds your standby generator supplying electricity. DP70ATS would be capable of power transfer in residential/small business applications.

2. All are NEMA-3 rated fully enclosed steel case.

3. 1-Phase 70 Amps at 120/240 VAC, 60Hz

4. Exclusive Design for DP15000EDS or DP18000EDS

6. Supervisory Control

 This industrial grade component features a control panel with red and green LED lights indicating the power sources available, and two relay operated contacts that allow the user to manage external loads during a power outage.

7. Silver Plated Copper Ground and Neutral Bus.

8. Light Weight/Ease of Installation
Efficient component selection has resulted in switch gear optimization for a lightweight product solution to residential/small business installations. Easy installation!

9. Screw Type Terminals for External Power Connections.

10. Optional TVSS Available on Normal, Emergency and /or Load

11.    Safety Features
the transfer switches are solenoid-operated from utility or generator inputs and contain electrical interlock switches to eliminate the possibility of dangerous back feed to line during an outage.

12.  One Year Warranty.

Package Size:  26"×14"×34"
Gross Weight:  77 lbs.
