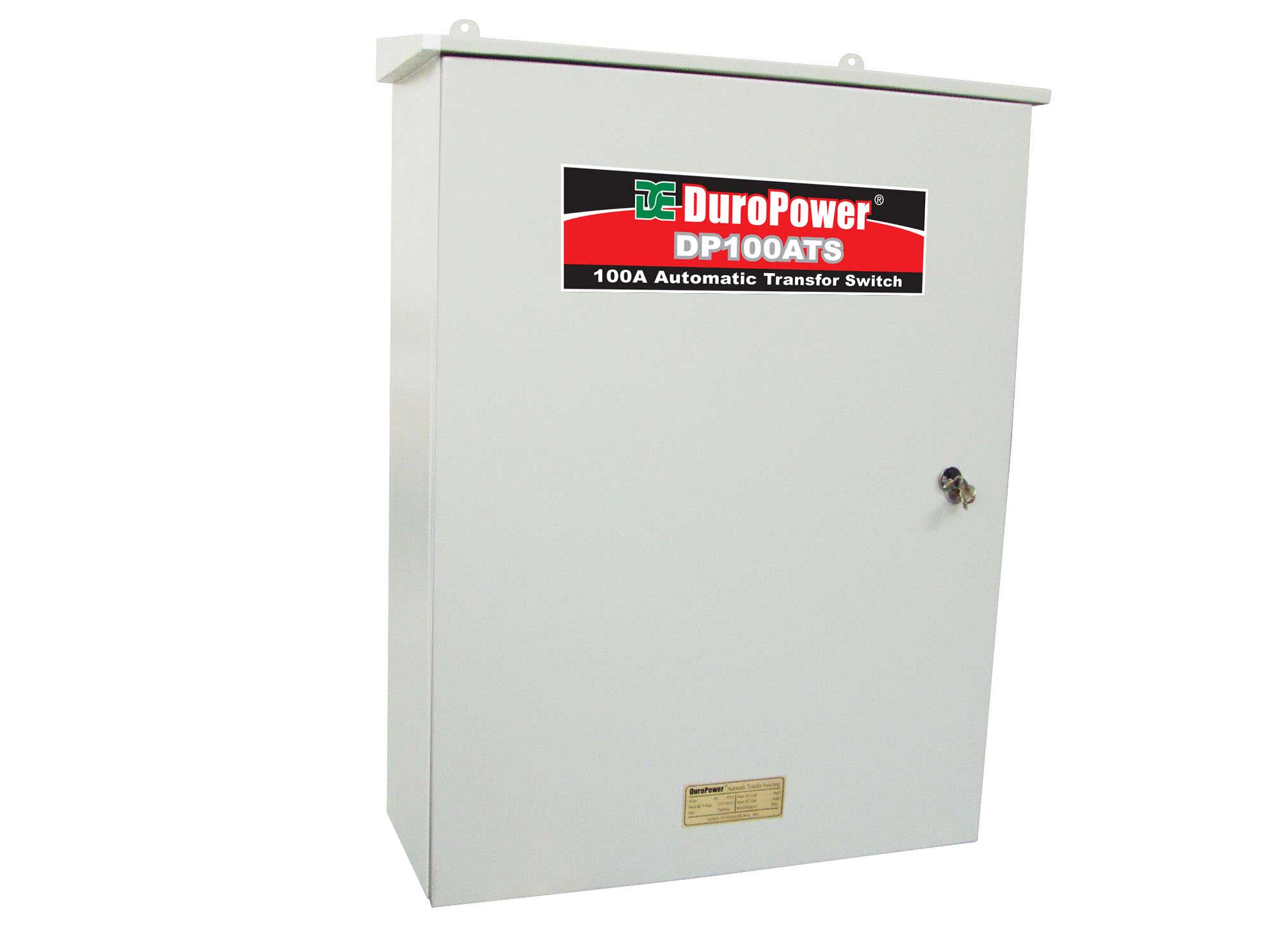

The DP100ATS 100A Automatic Transfer Switch

Features & Specifications

1.  Fully Automatic
Fully Automatic Tune on your generator during power failure & lights working! DP100ATS would be capable of power transfer in residential/small business applications.

2.      All are NEMA-3 rated totally enclosed steel case.

3.      1-Phase 100 Amps at 120/240 VAC, 60Hz

4.      Exclusive Design for DP18000EDS or DP22500EDS

6.  Supervisory Control

This industrial grade component features a control panel with red and green LED lights indicating the power sources available, and two relay operated contacts that allow the user to manage external loads during a power outage.

7.  Silver Plated Copper Ground and Neutral Bus.

8.  Light Weight/Ease of Installation

9.    Screw Type Terminals for External Power Connections.

10.   Optional TVSS Available on Normal, Emergency and /or Load

11.    Safety Features
The transfer switches are solenoid-operated from utility or generator inputs and contain electrical interlock switches to eliminate the possibility of dangerous back feed to line during an outage.

12.   One Year Warranty.

Package Size: 30"×14"×39"

Gross Weight: 110 lbs
